Applicable products:：
1010、2121、1515、2835、3020、3528、5050、7070、3014、0603 and other full categories of LED products
Features:
Product advantages:
Product parameters:
- UPH has been comprehensively improved, based on the newly designed high-speed and high-stiffness XY platform, bringing the ultimate experience of fast, accurate and stable;
- The ultra-fast arc mode developed for the LED Industry, supports various complex arc types, and debugging is simple and fast;
- Equipped with a new high-speed recognition algorithm, the recognition efficiency and recognition speed are 30% higher than that of the previous generation;
- Mature process support for small electrode LED and high-and LED products;
- Brand new EFO function design, multi-stage high precision output in EFO stage;
- Fast, real-time, accurate and high-precision post bond inspection(PBI);
- Brand new structure design, greatly simplifies the maintenance and lower the cost, improves customers on site efficiency;
- It has adaptive temperature control system to effectively improve the bonding accuracy.
Product advantages:
- The fastest LED wire bonder in China;
- The LED product process is mature;
- High bonding precision;
- Good stability and low maintenance costs.
Product parameters:
| Bonding Parameters | Bonding Accuracy | 士2μm@3σ |
| Bonding speed | 40ms@2mm WL | |
| Wire Diameter | 15-50uμm | |
| XY Table | Max Bonding Area | X:56mm Y:75mm |
| XY Resolution | 50nm | |
| Applicable Leadframe | Length | 95-275mm |
| Width | 22-78mm | |
| Thickness | 0.07-2.0mm (≥1.0mm need customize) |
|
| Specification | Weight | ≈600Kg |
| Dimension | 940mm x 890mm x 1960mm |

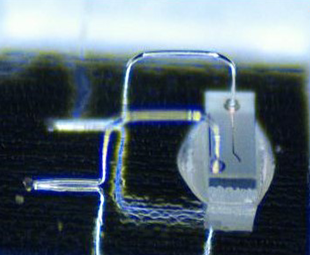

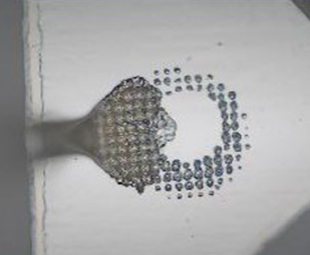

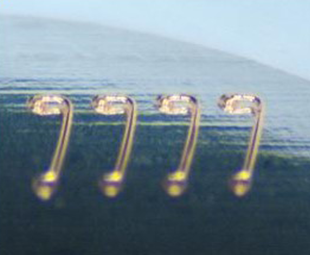

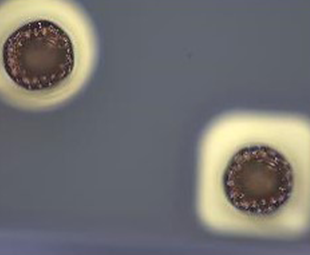

Sample
