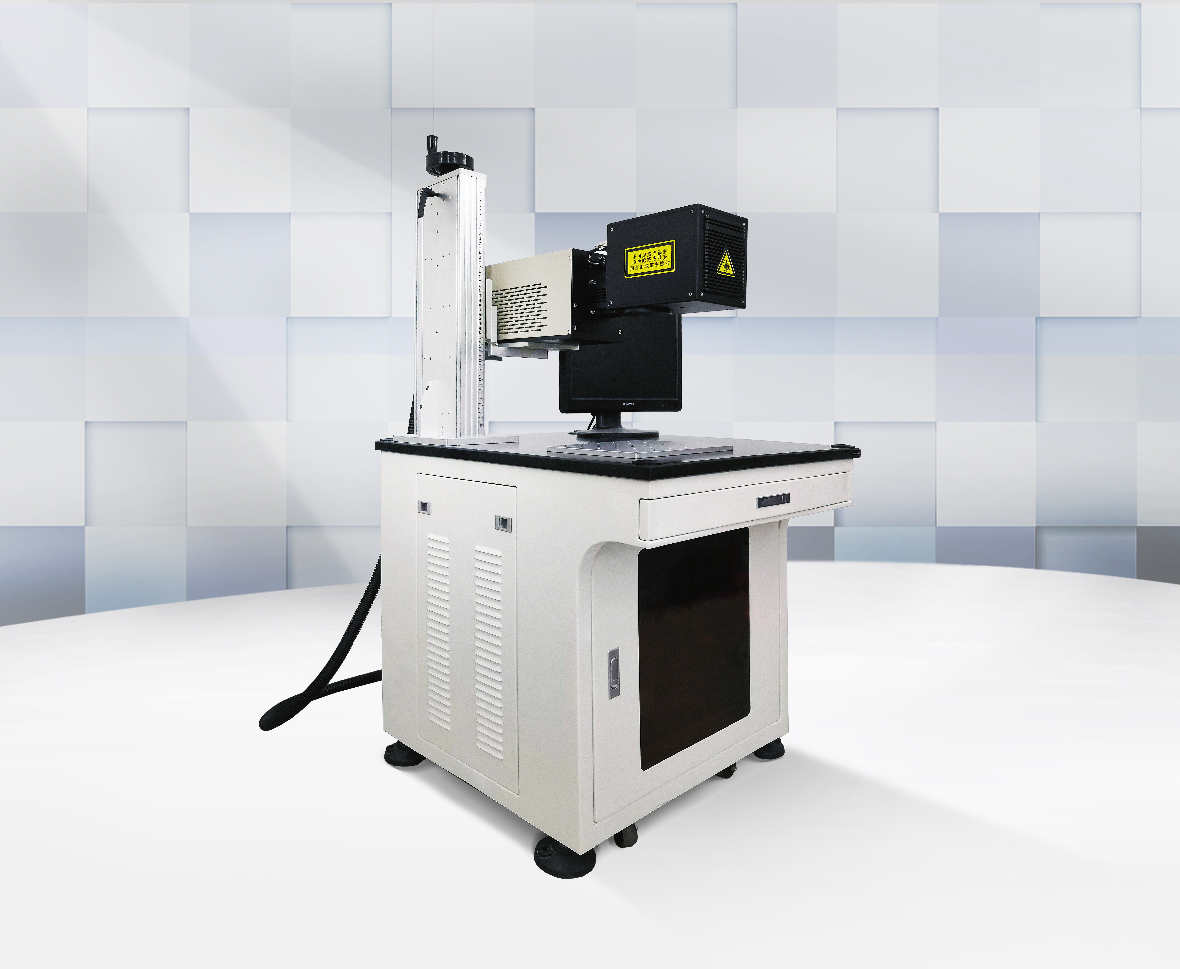

CO2-G10

Brief Description

It can engrave non-metallic materials and partial metal materials, widely applied to food packaging, drink packaging, medicine packaging, architectural ceramics, clothing accessories, leather, button, textile cutting, gifts and crafts, rubber product, sto

Categories CO2 laser marking

Features：

Low power imported laser, rear focusing, integrated equipment, adjustable optical girder, extensive processing of plane, air cooling, widely applied to graphics and texts marking of gifts and crafts, food packaging, electronic component, PCB bar code, FPCB, ceramic substrate, semiconductor, crystal glass, plastic connector, rubber button, SMD component and other materials.

Specification:

Machine model		CO2-H55i	CO2-D30	CO2-G10
Laser characteristics	CO2 laser
	Largest power	55W	30W	10W
	Power stability	±5%	±5%	±10%
Marking area		85mm*85mm		50mmx50mm
Engraving speed		≤3m/s
Min. line width		0.12mm		0.05mm
Min. character		0.6mm		0.2mm
Repeated position		±0.01mm
Protection level		IP54
Cooling mode		Air cooling
Power supply voltage		220V/10A	220V/10A	220V/10A
Power consumption		2kW	900W	300W
Best working environment	Temperature	15℃-30℃
	Humidity	45%-75%
Dimension (LWH)	Optical system	1120x620x1370mm
	Control system	Integrated machine
	Cooling system	Air cooling
Weight	Optical system	110kg
	Control system	Integrated machine
	Cooling system	Air cooling
